In the world of telecommunications, the T2002M6R084 e-tilt antenna is a standout product from Tongyu, a brand renowned for its innovative solutions in wireless communication. This antenna is designed for superior performance and reliability, making it an essential component for modern network deployments.
Mechanical Specifications of the T2002M6R084

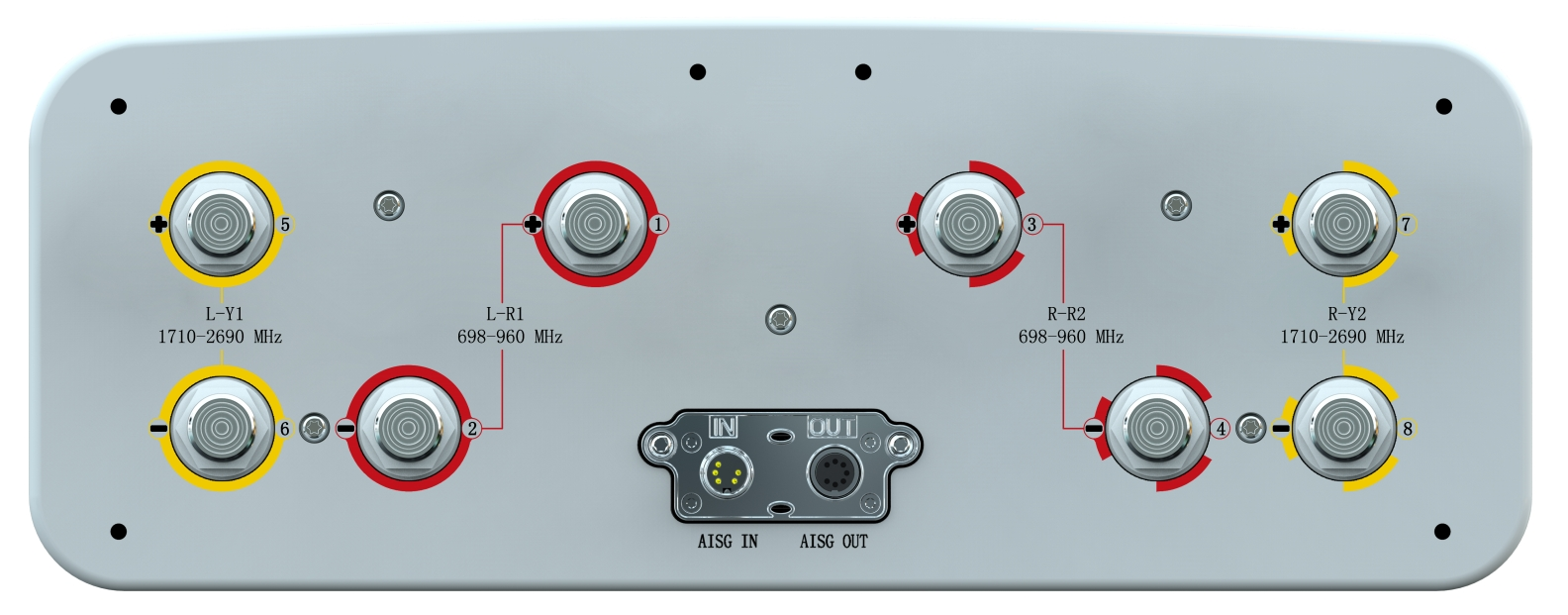

The T2002M6R084 e-tilt antenna boasts impressive mechanical specifications that cater to a wide range of applications. Featuring a Connector 8×4.3-10 Female positioned at the bottom, this antenna measures 1999 mm in height, 446 mm in width, and 165 mm in depth. The packing size is also substantial, at 2290 mm × 510 mm × 215 mm, ensuring that it can be transported safely. Weighing 30.3 kg, the antenna is designed for stability, while the installation kit adds an additional 5.4 kg. The total packing weight reaches 43 kg, reflecting the robust construction of this e-tilt antenna.
Further enhancing its performance, the T2002M6R084 can withstand significant wind loads, with frontal/lateral/rear ratings of 705 N, 190 N, and 650 N at a wind speed of 150 km/h. The antenna’s maximum wind velocity rating is 216 km/h, ensuring reliability in challenging weather conditions. Made from fiberglass and UV resistant material, the radome is available in gray or customized colors, adding versatility to its installation options.
Installation and Operating Conditions
The T2002M6R084 e-tilt antenna is designed for easy installation, accommodating mounting hardware sizes from φ50 to φ115 mm. It operates efficiently across a wide temperature range of -50 to 65℃, making it suitable for various environments. The mechanical tilt capability of 0 to 10 degrees allows for fine-tuning, optimizing signal quality and coverage.
Conclusion
In summary, the T2002M6R084 e-tilt antenna from Tongyu offers exceptional mechanical specifications and adaptability, making it an ideal choice for telecommunications providers. With its durability, ease of installation, and performance under varying conditions, this e-tilt antenna is a valuable asset for enhancing wireless network infrastructure.
